TECHNICAL SPECIFICATIONS

1. GENERAL INFORMATION

• Package dimension: 62cm W x 43cm D x 78.5cm H

• Gross weight: 27 kg

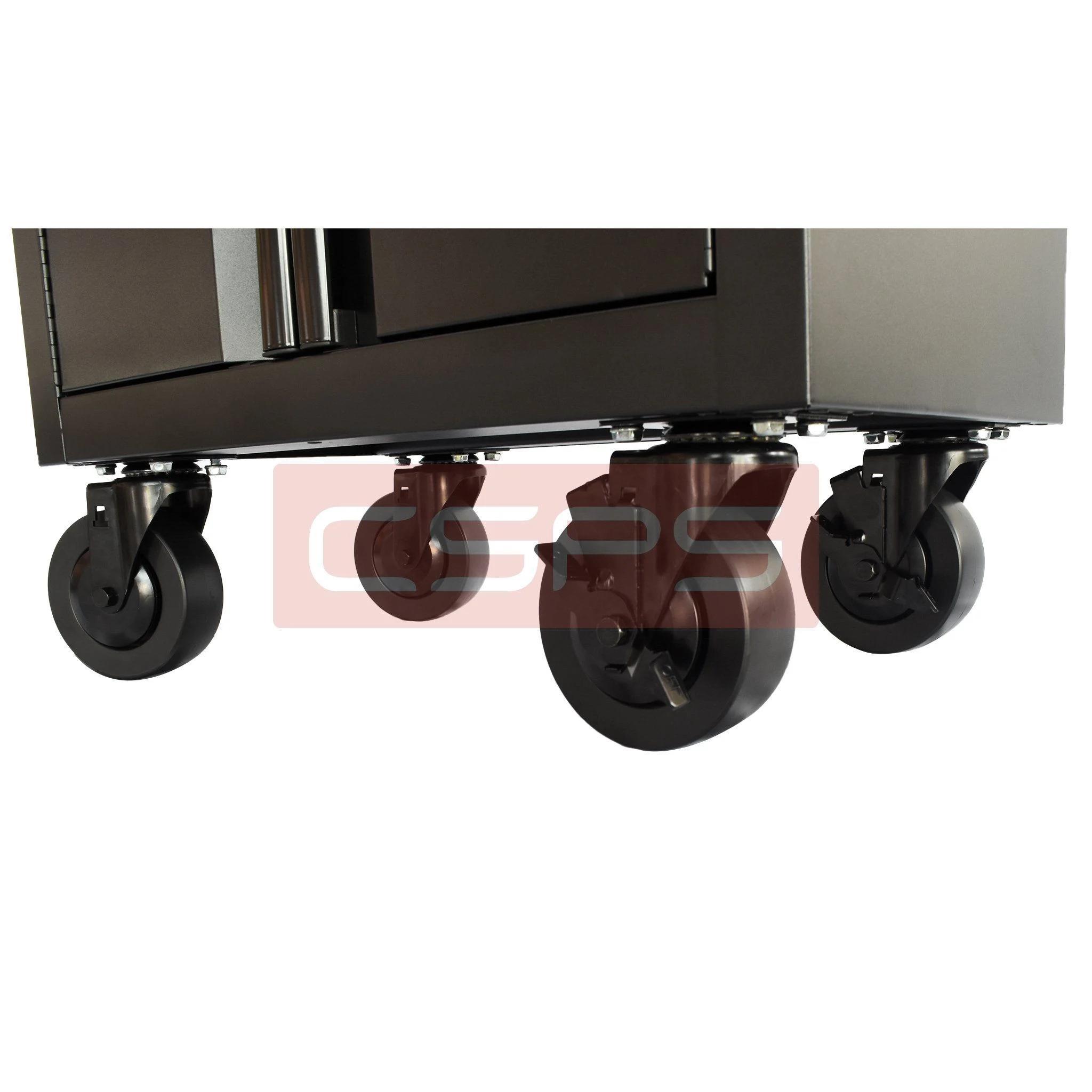

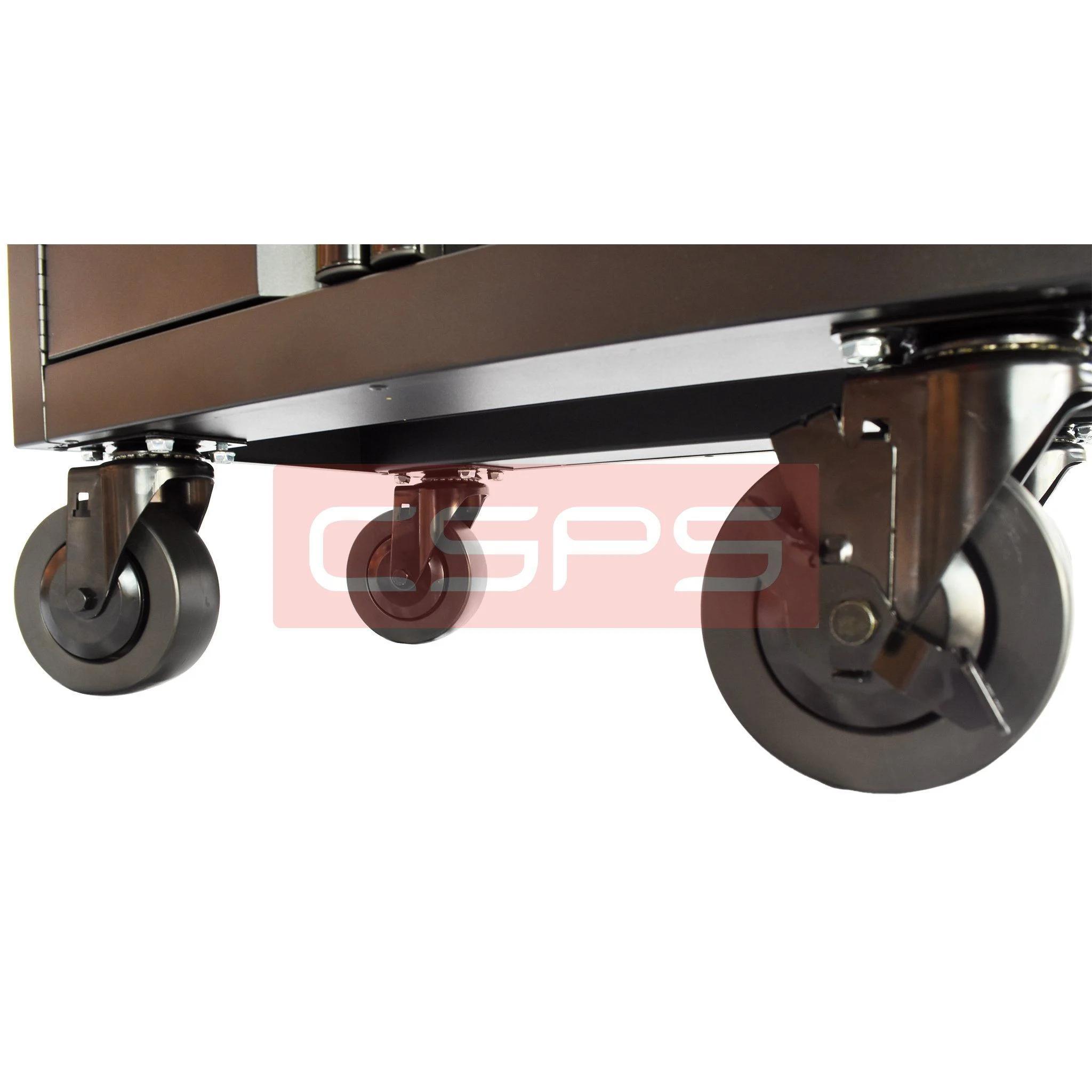

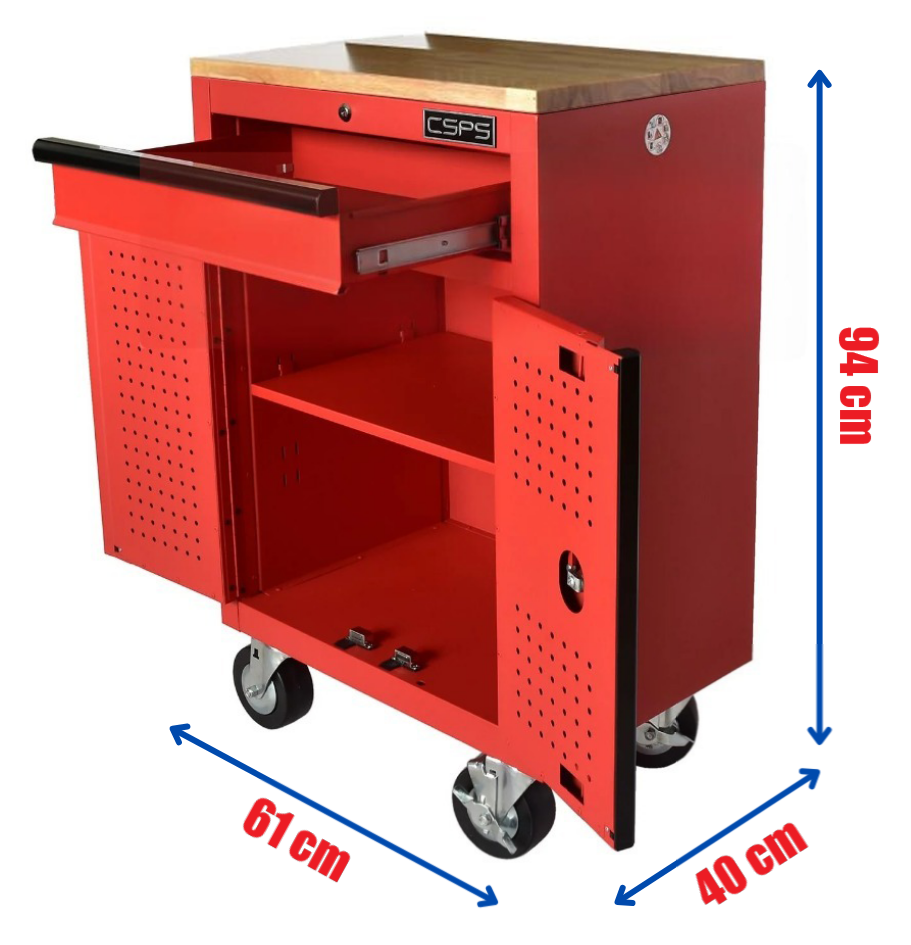

• Product dimension: 61cm W x 40cm D x 94cm H (including caster height)

• Net weight: 24.5 kg

• Warranty: 2 years

2. CAPACITY

• Overall capacity:

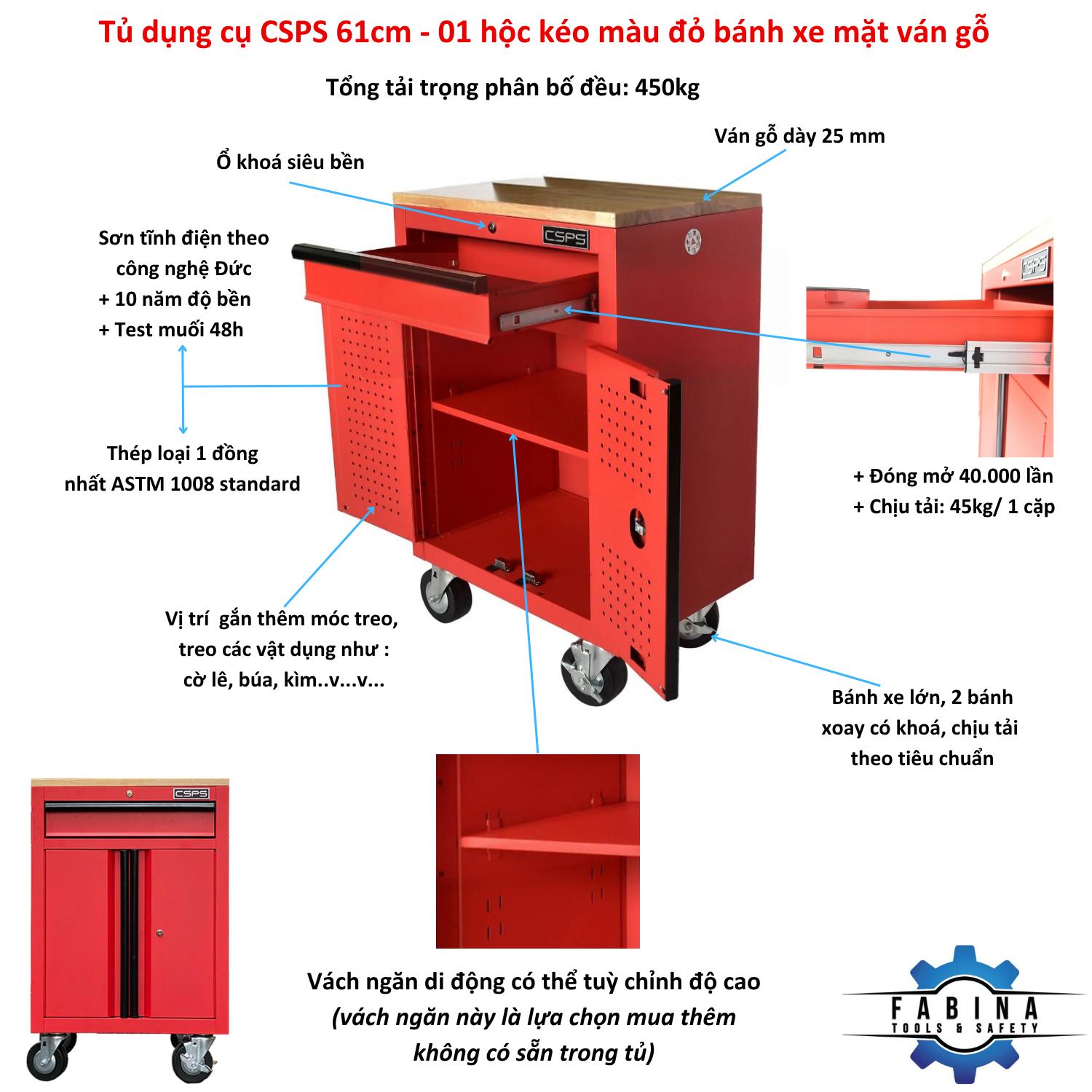

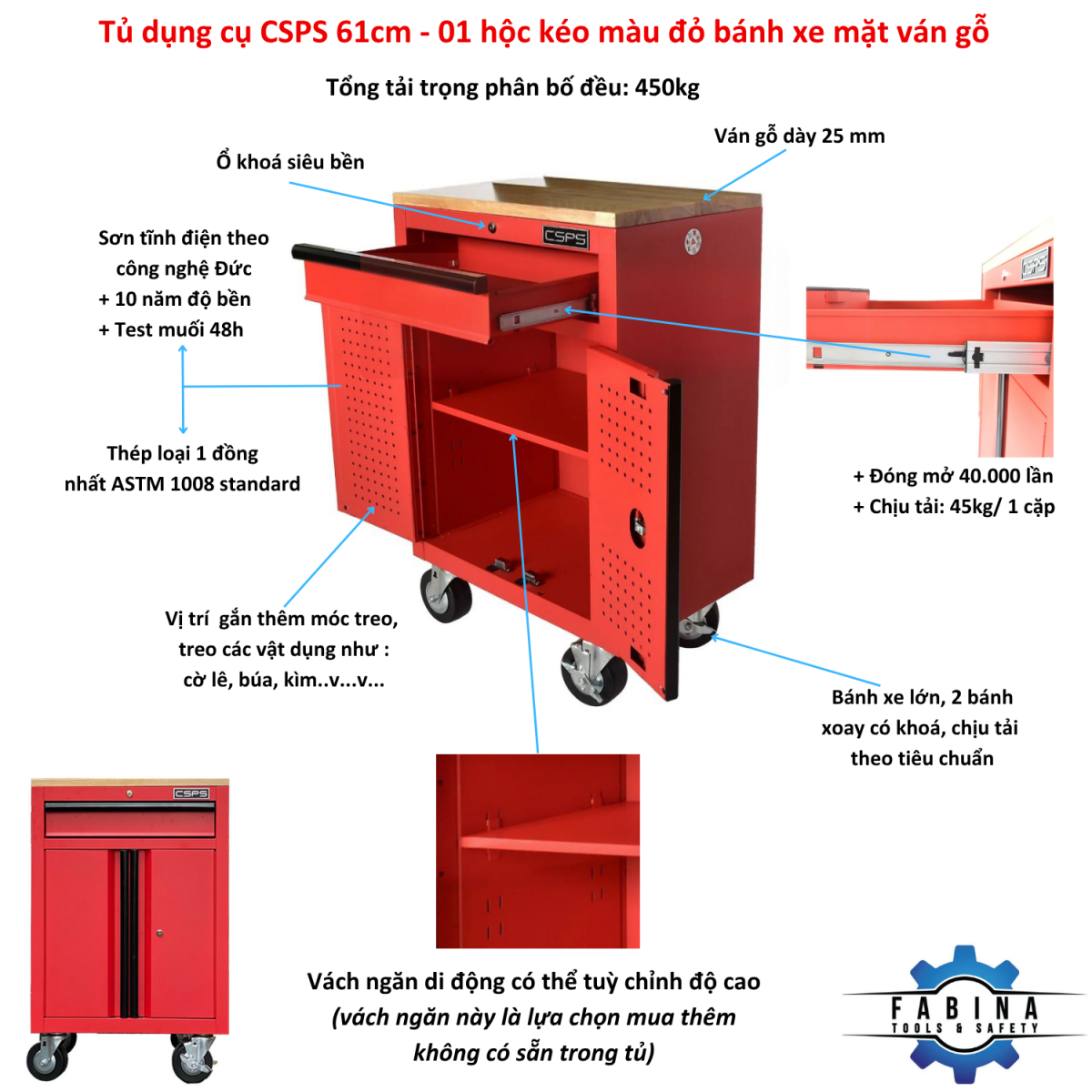

  • Total: 450 kg

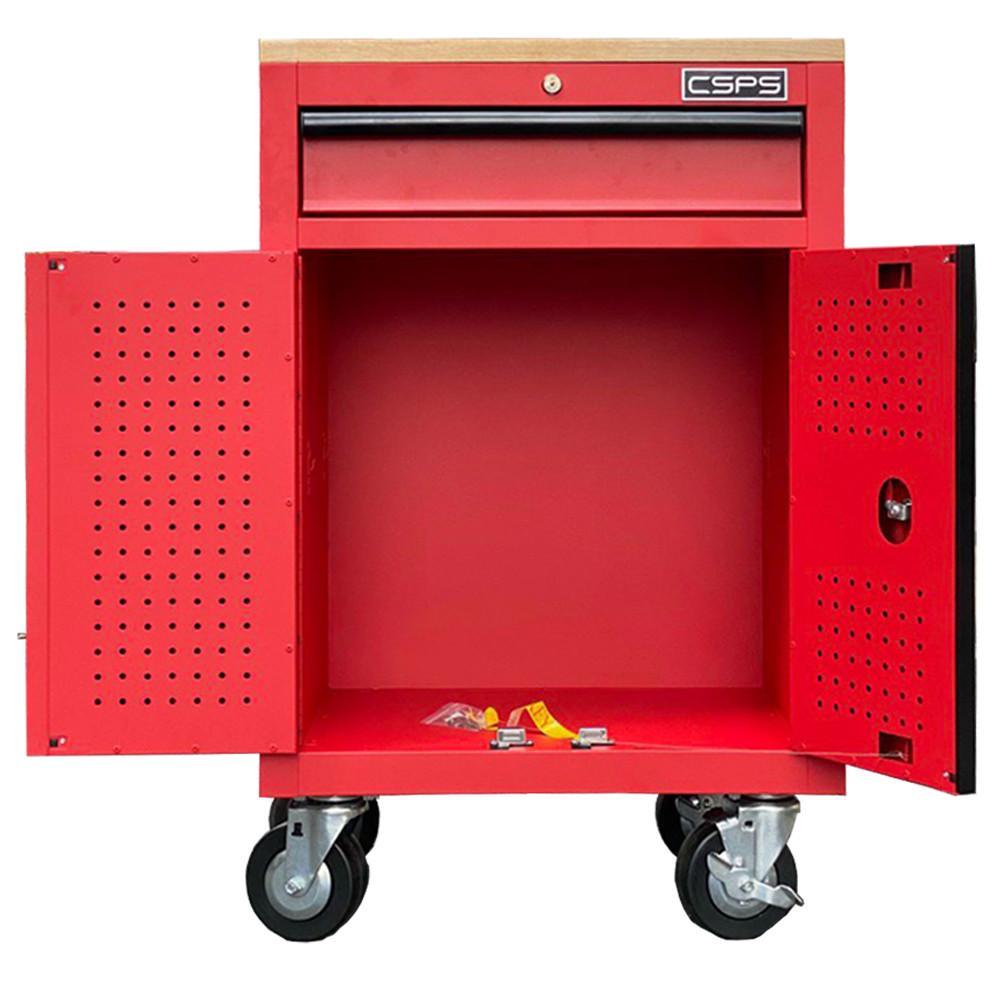

  • Door base cabinet: 450 kg. Quantity: 01

  • Drawer: 45 kg per drawer. Quantity: 01

  • Partition: 45 kg per partition. Quantity: 01

• Drawers:

  • Quantity: 01

  • 3-tier ball bearing slides

  • Capacity: 45 kg per drawer

  • Usage cycle: 40,000 times

3. OTHERS

• Coating:

  • Color: Matte Red

  • Powder coating technology

  • Coating durability: 10 years

• Partition: 01 partition

4. STANDARDS

• Appearance:

  • 16 CFR 1500.48/1500.49 (Scope widened): Sharp point test

  • 16 CFR 1303: Lead-containing paint test

• Coating:

  • ASTM B117 (mod.) & ASTM D610 (mod.): Corrosion test

  • ASTM D3363 (mod.): Hardness test

  • ASTM D2794: Impact test

  • ASTM D4752: Solvent resistance rub test

  • ASTM D3359: Cross-cut tape test

• Steel:

  • ASTM A1008: Standard specification for steel

• Functionality:

  • ANSI/BIFMA X 5.9: Storage unit test – Static loading, dynamic loading, durability testing

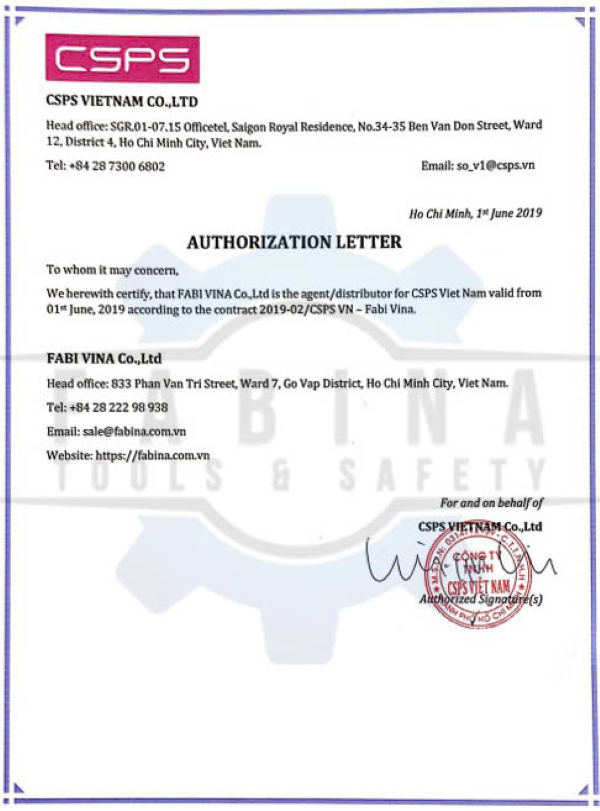

Authorized Distributor Certificate:
