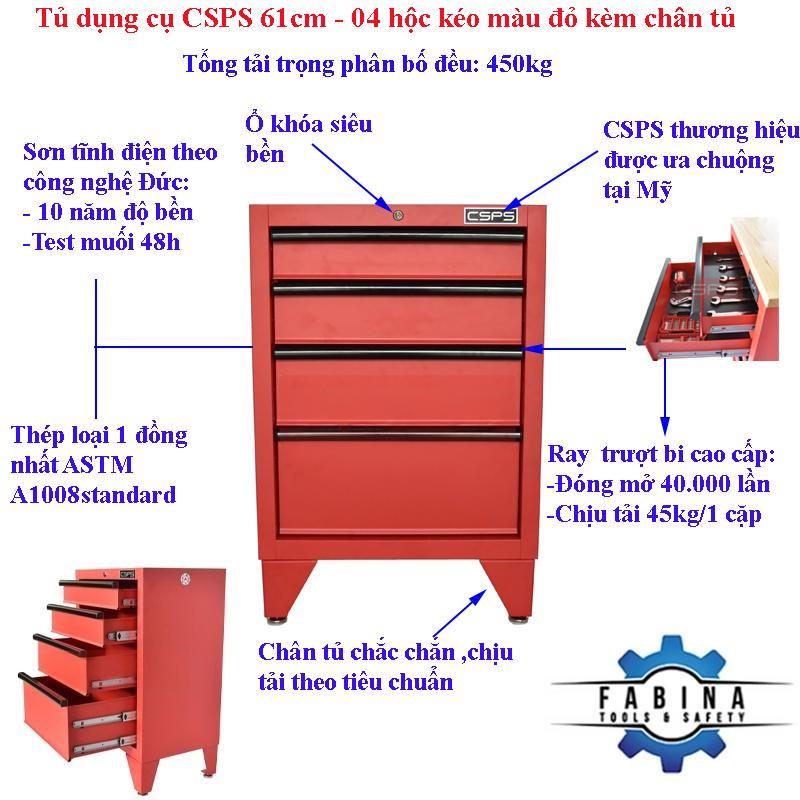

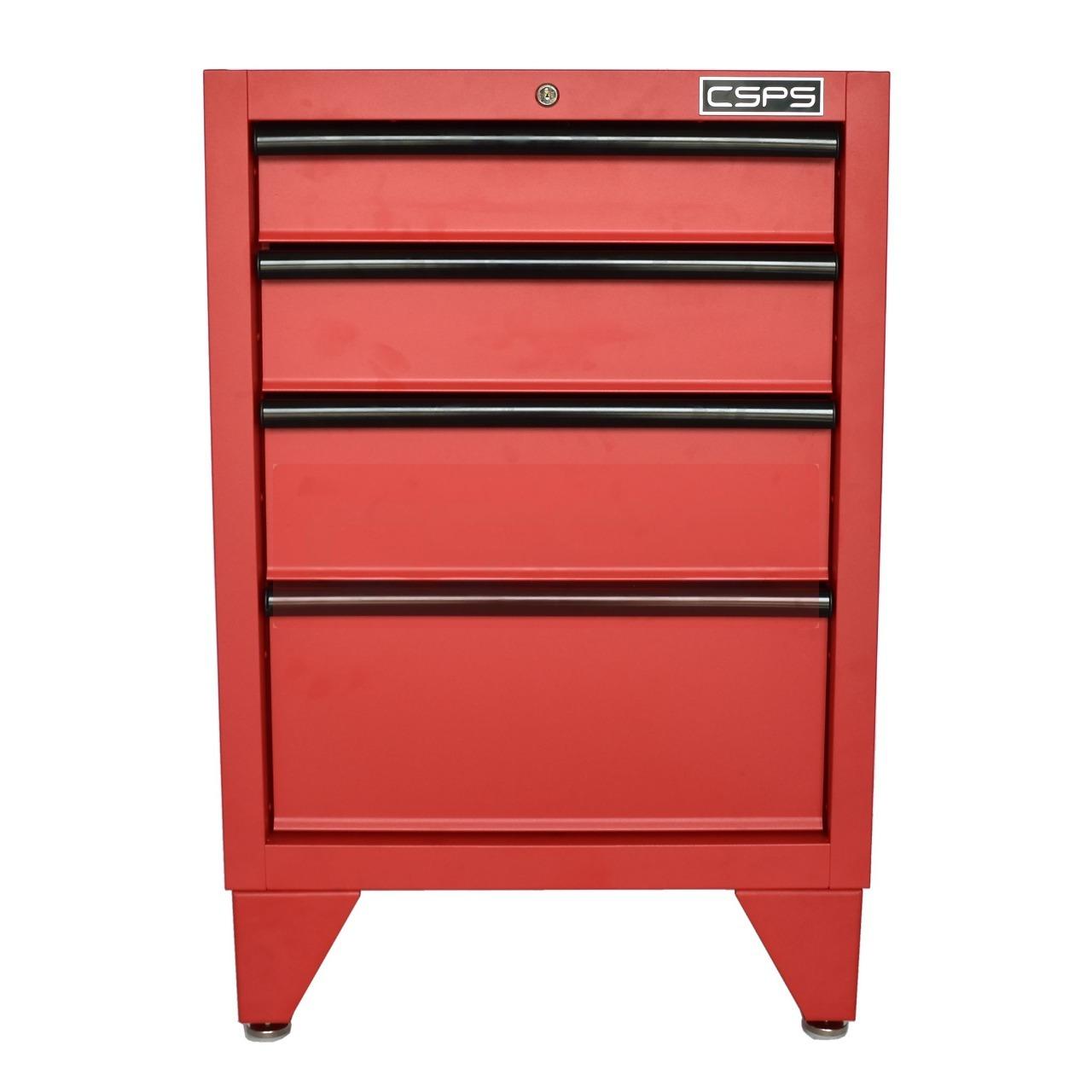

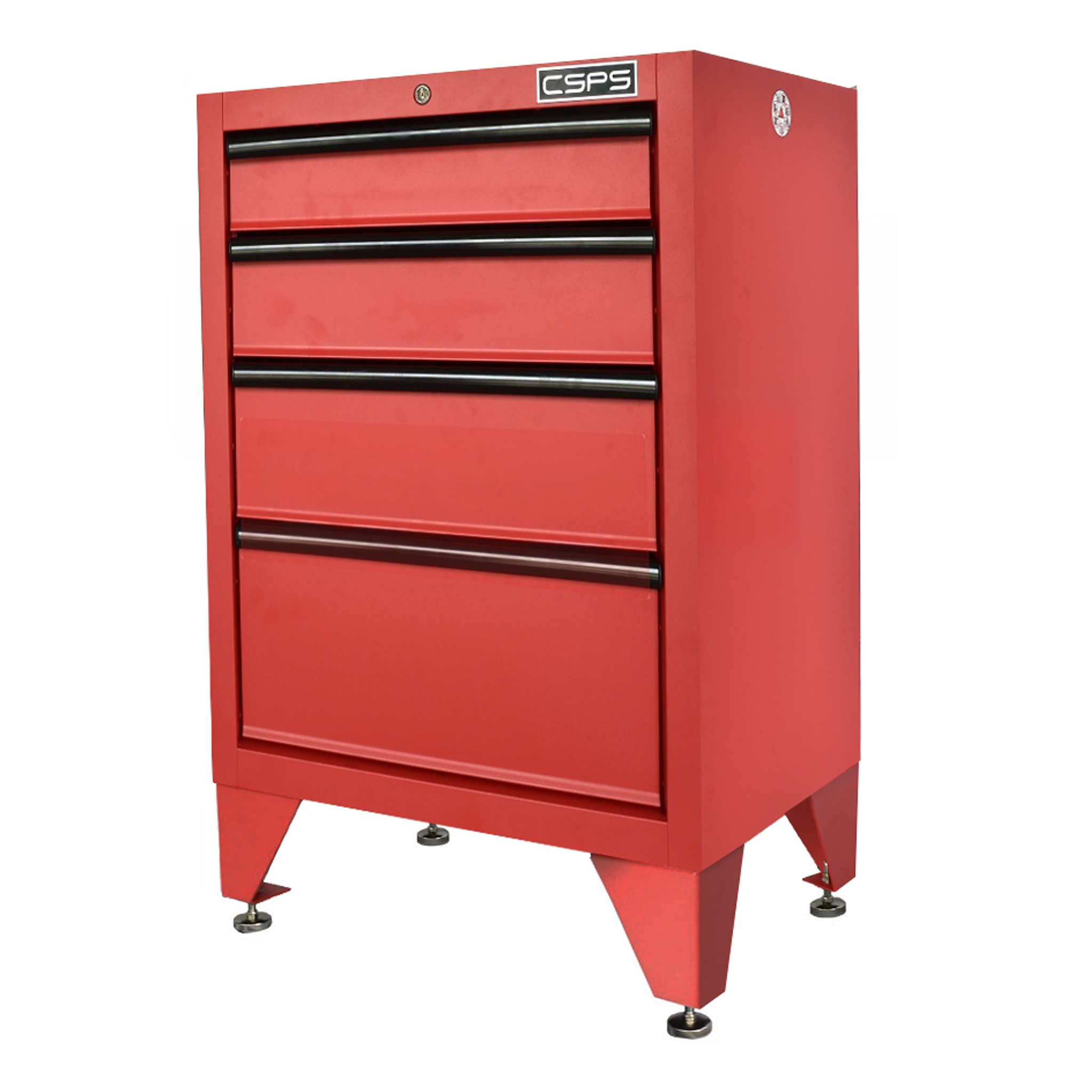

CSPS Matt Red tool cabinet 61cm including cabinet legs - 04 drawers

TECHNICAL SPECIFICATIONS:

1. GENERAL INFORMATION

• Package dimension: 62cm W x 43cm D x 78.5cm H

• Gross weight: 38.2kg

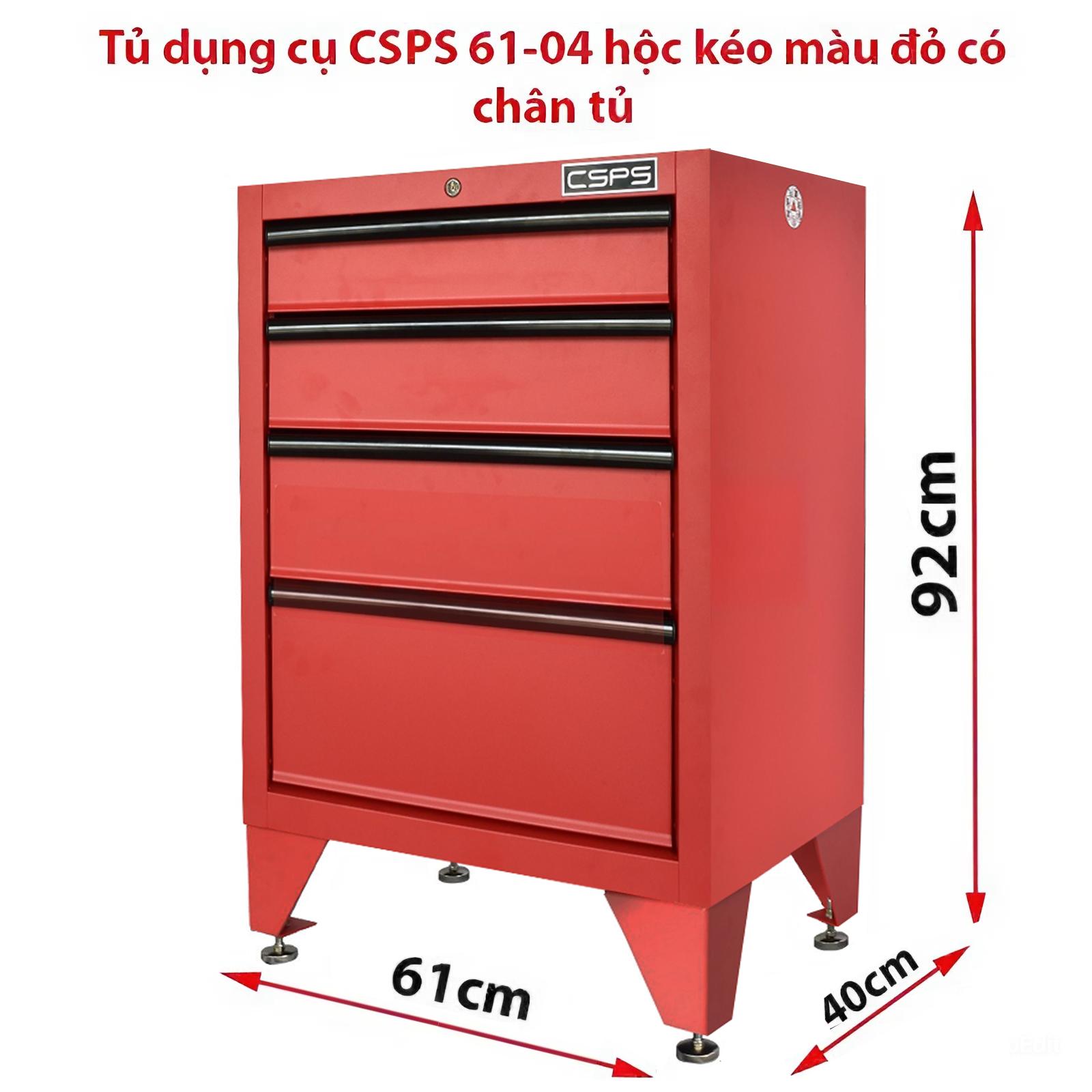

• Product dimension: 61cm W x 40cm D x 92cm H (Including cabinet legs)

• Net weight: 35.2kg

• Warranty: 2 years

2. CAPACITY

• Overall capacity:

  • Total: 450kg

  • Door base cabinet: 450kg. Quantity: 01

  • Partition: 45kg / drawer. Quantity: 01

  • Small Drawer : 45kg/ drawer. Quantity: 03

  • Big Drawer : 90kg/ drawer. Quantity: 01

  • Drawer: 61cm W x 40cm D x 76cm H. Quantity: 04.

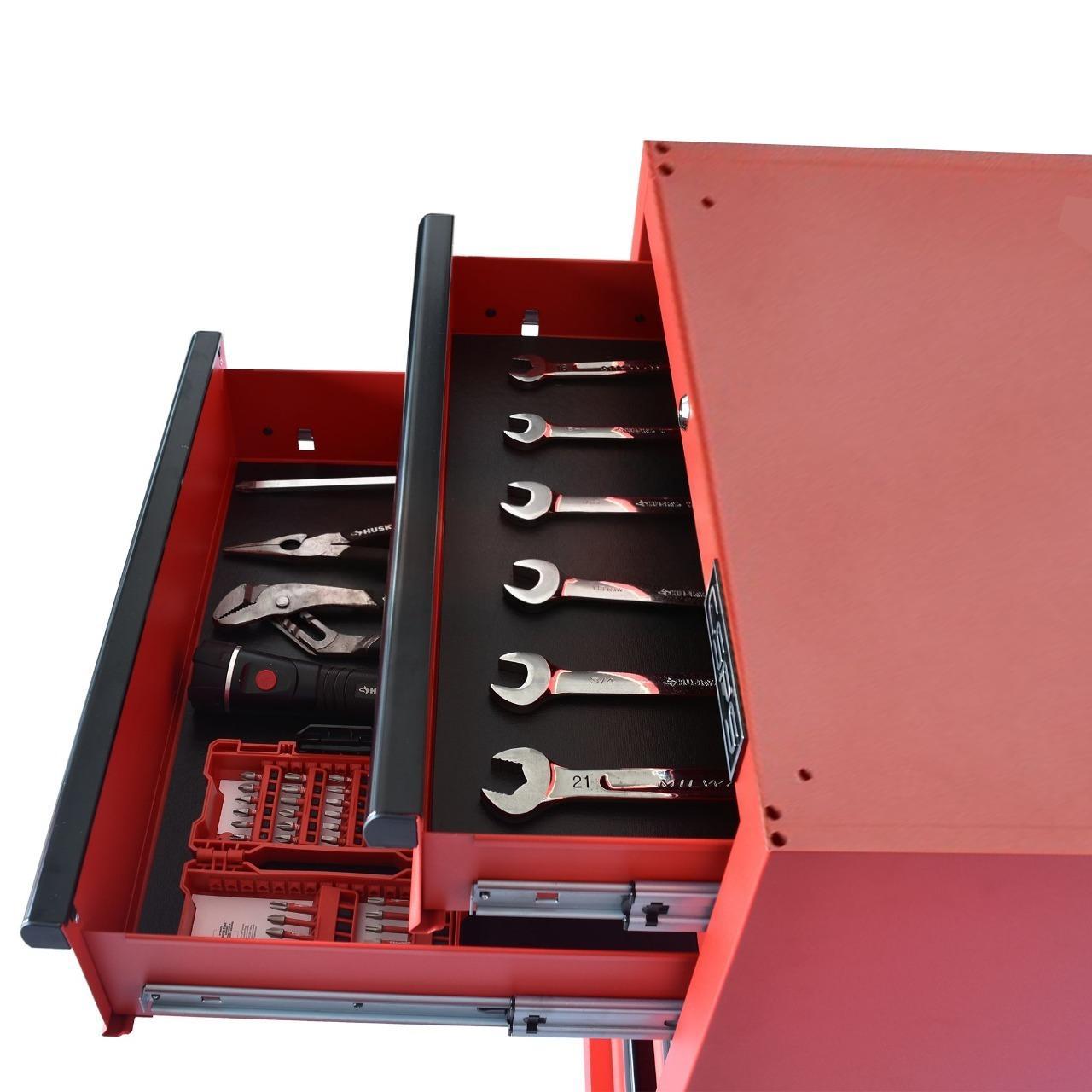

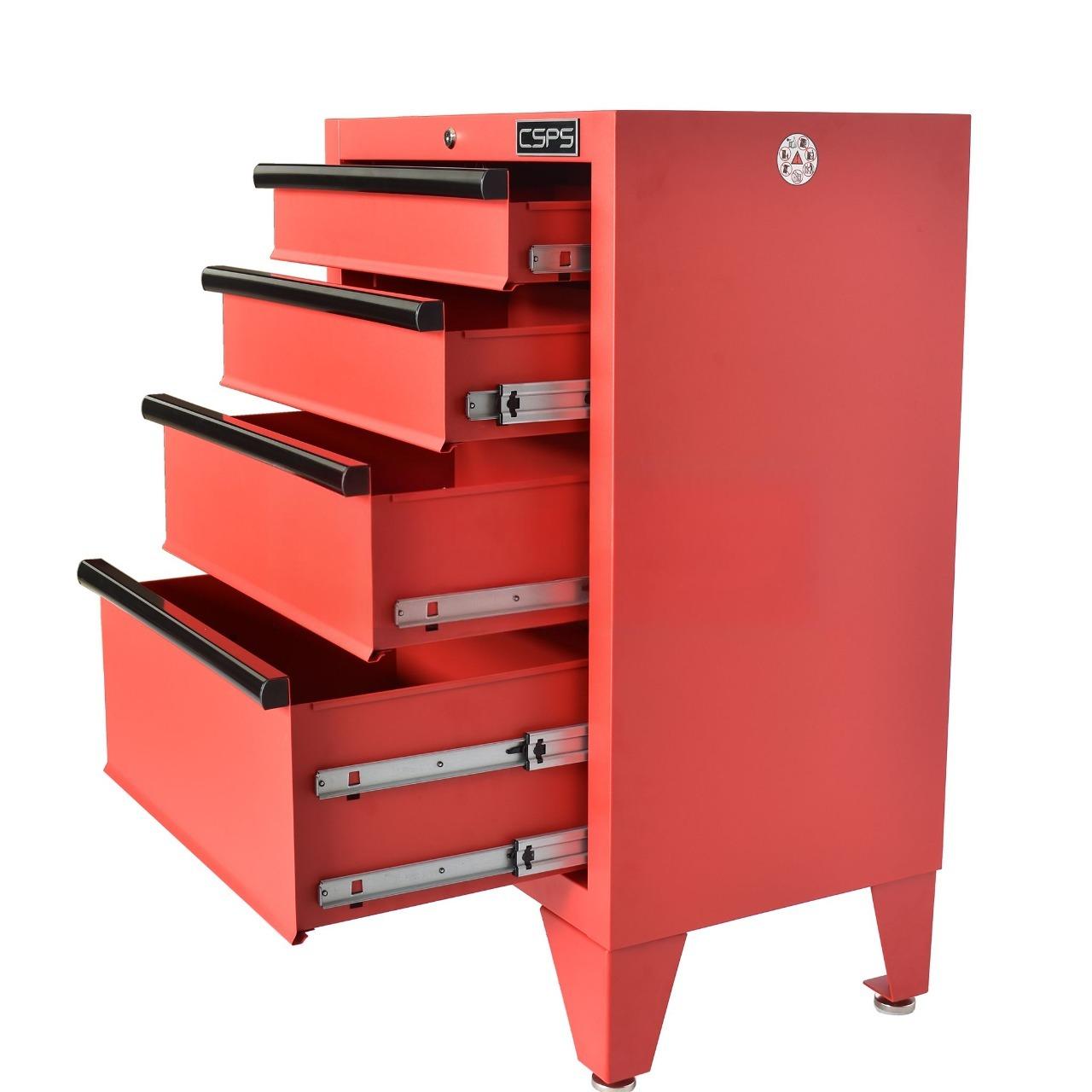

  • Using Ball bearing slides.

  • Capacity: 45 kg / drawer

  • Usage cycle: 40,000 lần

3. OTHERS

• Coating:

• Color:

  • Matt Red

• Powder coating technology

• Coating durability: 10 years

4. STANDARDS

• Appearance: 16 CFR 1500.48/1500.49 (Scope widened): sharp point test

• 16 CFR 1303: lead-containing paint test

• Coating: ASTM B117 (mod.) & ASTM D610 (mod.): corrosion test

• ASTM D3363 (mod.): hardness test

• ASTM D2794: impact test

• ASTM D4752: solvent resistance rub test

• ASTM D3359: cross-cut tape test

• Steel: ASTM A1008: standard specification for steel

• Function: ANSI/BIFMA X 5.9: Storage unit test – Static load loading; dynamic loading; durability testing

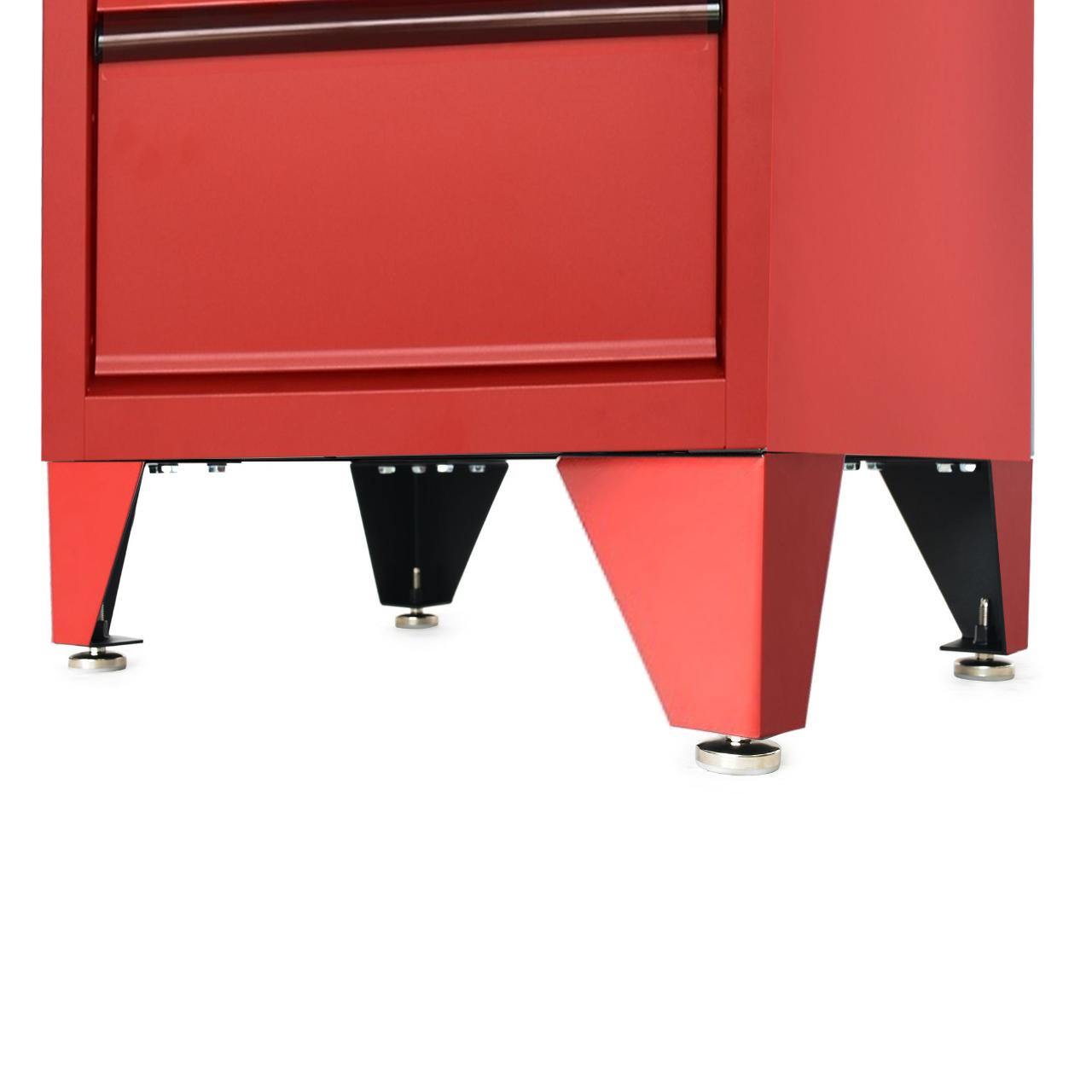

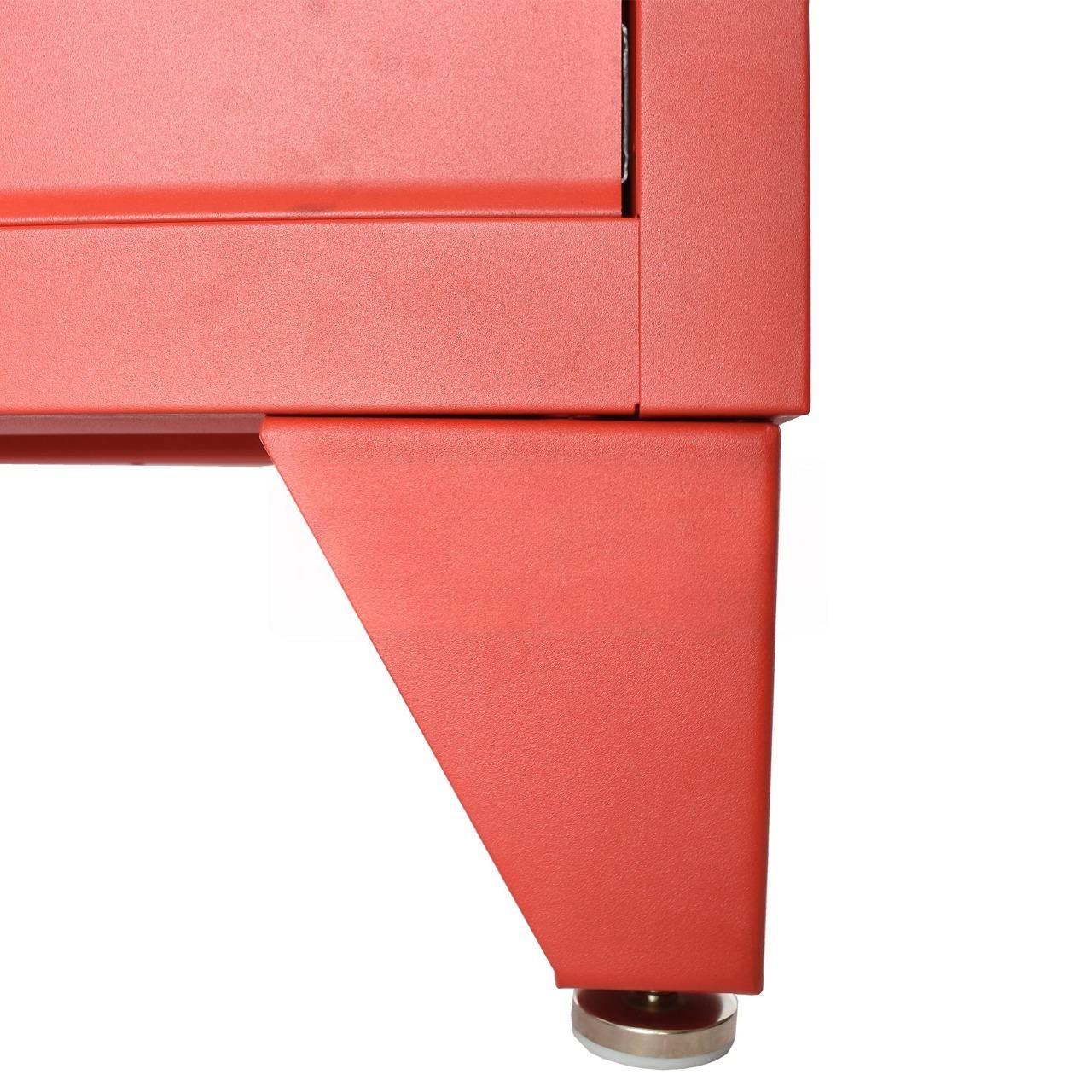

5. CABINET LEGS SPECIFICATIONS:

• Package dimension: 15cm W x 15cm D x 15.5cm H

• Gross weight: 2.9 kg

• Product dimension: 12.2cm W x 9cm D x 16cm H

• Net weight: 2.8 kg

• Warranty: 2 years

• Overall capacity (4 cabinet legs): 680kg

• Coating: Matt Red

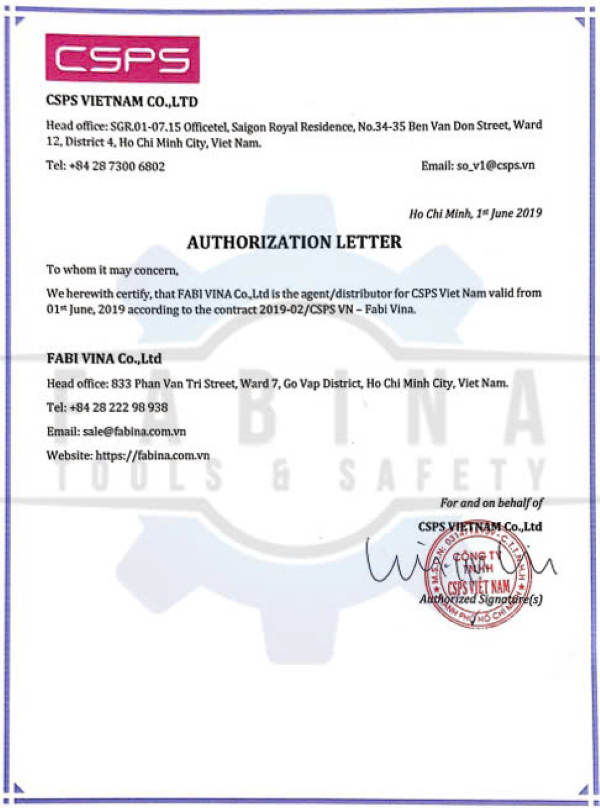

Authorized Distributor Certificate:

FABINA is currently seeking distributors for CSPS tool cabinets and workbenches across the country.

Founded in 1993, CSPS is the world’s leading OEM manufacturer in the tool storage industry. CSPS products are now available in the markets of the United States, Canada, Australia, and Vietnam.
